DT3-3 Kit 3 Way 0.5-1.0mm² Ni Plated Contacts
DT3-3
$9.60
In Stock
Notify me when back in stock
DT3-3 Kit 3 Way Nickel Plated Contacts
- Contact current rating 13A
- Conductor area 0.5 to 1.0mm²
- Recomended insulation strip 6.4 to 8mm
- Wire insulation outside diameter range for effective rear seal 2.23 to 3.68mm

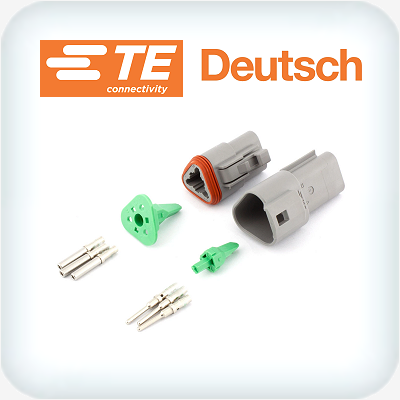

Kit Contents
| Recepticle | Wedge | Plug | Wedge | Contacts |
| 1x DT04-3P | 1x W3P | 1x DT06-3S | 1x W3S-P012 | 3x Nickel Plated Pin 0460-202-16141 |
| 3x Nickel Plated Socket 0462-201-16141 |
Applications
Versatile and reliable, DT connectors are ideal for automotive and marine applications
Commonly used for medium current circuits to 13A in harsh environmental conditions
Features
- Wire-to-Wire Connection
- Integrated Locking Mechanism
- Sealed to IP68 (When all contacts populated and connectors are mated)
- Operating Temperature of -55°C to +125°C
| Number of Contacts |
DT Plug | DT Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 28.4mm | 15.95mm | 15.01mm | 43.38mm | 17.02mm | 17.15mm |
| 3 | 28.4mm | 23.72mm | 18.23mm | 43.13mm | 24.71mm | 21.13mm |
| 4 | 30.94mm | 18.39mm | 18.19mm | 45.92mm | 19.71mm | 20.83mm |
| 6 | 30.94mm | 22.63mm | 18.19mm | 45.92mm | 24.16mm | 20.83mm |
| 8 | 30.91mm | 19.71mm | 37.21mm | 45.67mm | 25.40mm | 36.45mm |
| 12 | 30.94mm | 18.19mm | 40.56mm | 45.92mm | 22.25mm | 40.56mm |
(DT3-3)
| SKU | DT3-3 |
| Brand | Deutsch |
