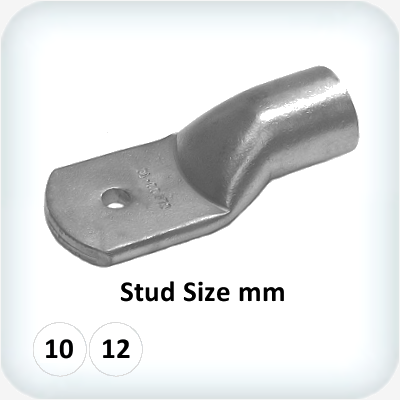

500mm² Copper Lug M12 Per Unit
CL500-12
$29.75
In Stock
| Buy In Packed Quantities and Save! | |
|---|---|
| Buy 5 or more: | Pay $26.78 |
Shipping
Free Delivery Australia wide for all orders - Minimum invoice value $50
Notify me when back in stock
Copper Compression Lug 500mm²
Features
- Copper Grade C11000
- 99.9% Copper Annealed and Tinned
- Maximum Oxygen Content 30ppm
- Operating Temperature Range -55°C to +155°C
- Terminate with Australian standard compression tooling only
| 500mm² Copper Lugs - All Dimensions mm | |||||||||
| Part No. | Stud | Ent ID | Palm W | Barrel L | Overall L | ||||
| CL500-10 | M10 | 30.0 | 56 | 50 | 126 | ||||
| CL500-12 | M12 | 30.0 | 56 | 50 | 126 | ||||
(CL500)
| Material | Property | |||||
| Copper |
99.9% Pure Copper | |||||
| Oxygen 30ppm Maximum | ||||||
| Tensile Strength 205Mpa Minimum | ||||||
| Ductile Rating 40% | ||||||
| Final Metal State Fully Annealed | ||||||
| Electroplating | 99.9% Pure Tin (Other Lead & Antimony) | |||||
| Performance | Conformant Standard AS/NZS4325 Part 1 :1995 | |||||
| Conductivity | Total Conductivity 99.9% IACS | |||||
| Resistance | Total Resistance 1.72 micro-ohms per cm | |||||
| SKU | CL500 |
| Brand | HellermannTyton |
