DT8FP-1 Half Kit 8 Way 1.0-2.0mm² Ni Plated Contacts
DT8FP-1
$13.84
In Stock
Notify me when back in stock

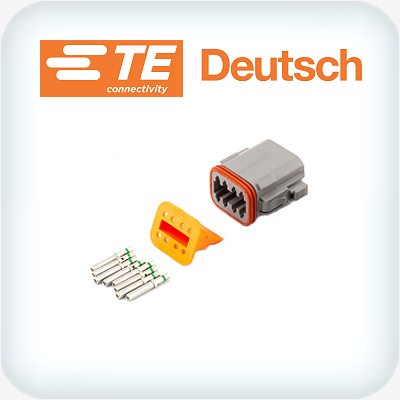

DT8FP-1 Plug Half Kit 8 Way 1.0-2.0mm² Ni Plated Contacts
Kit Contents
| Plug | Wedge | Contacts |
1x DT06-08SA |
1x W8S |
8x Nickel Plated Socket 0462-209-16141 |
Optional Accessories
| Cavity Plug, Backshell, Boot, & Dust Cover Options |
| DT #16 & DTP #12 Cavity Plug PN 114017 |
| DT06-12S Plug Backshell Straight Suits NC10,12,&16 PN 1011-247-1205 |
| DT06-12S Plug Backshell 90° Suits NC10,12,&16 PN 1011-248-1205 |
| DT06-12S Plug Boot Plastisol Grey 65mm PN DT12S-BT |
| DT06-12S Plug Boot Plastisol Black 120mm PN DTB12S |
| DT06-12SA Thermoplastic Latched Dust Cover M5 Lug PN 1011-349-1205 |
| Tools |
| #16 Machined Contact Crimp Tool PN DET16 |
Optional Accessories
| Cavity Plug, Backshell, Boot, & Dust Cover Options |
| DT #16 & DTP #12 Cavity Plug PN 114017 |
| DT06-08S Plug Backshell Straight Suits NC10,12,&16 PN 1011-243-0805 |
| DT06-08S Plug Backshell 90° Suits NC10,12,&16 PN 1011-244-0805 |
| DT06-08S Plug Boot Plastisol Grey 65mm PN DT8S-BT |
| DT06-08S Plug Boot Plastisol Black 120mm PN DTB8S |
| DT06-08SA Thermoplastic Latched Dust Cover M5 Lug PN 1011-348-0805 |
| Tools |
| #16 Machined Contact Crimp Tool PN DET16 |
Dimensions
| Number of Contacts |
DT Plug | DT Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 28.4mm | 15.95mm | 15.01mm | 43.38mm | 17.02mm | 17.15mm |
| 3 | 28.4mm | 23.72mm | 18.23mm | 43.13mm | 24.71mm | 21.13mm |
| 4 | 30.94mm | 18.39mm | 18.19mm | 45.92mm | 19.71mm | 20.83mm |
| 6 | 30.94mm | 22.63mm | 18.19mm | 45.92mm | 24.16mm | 20.83mm |
| 8 | 30.91mm | 19.71mm | 37.21mm | 45.67mm | 25.40mm | 36.45mm |
| 12 | 30.94mm | 18.19mm | 40.56mm | 45.92mm | 22.25mm | 40.56mm |
(DT8FP-1)
| Deutsch DT Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating #16 Pin | 13A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Rear Seal to Wire Insulation | 2.3mm to 3.6mm |
| Millivolt Drop @ 13A | ≤100mV |
| SKU | DT8FP-1 |
| Brand | Deutsch |
