Assorted Thin Wall Kit Large Pack

LGHS

$6.05
Sold Out - Backorder Available


Shipping

Free Delivery Australia wide for all orders - Minimum invoice value $50


Product: Assorted -

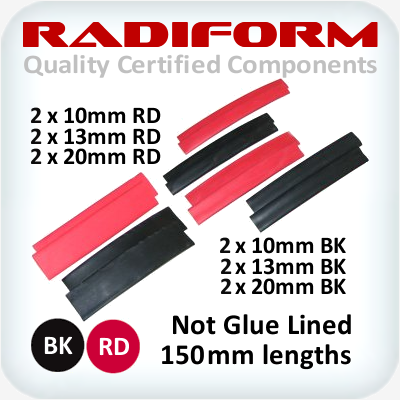

Two of red, two of black in 10, 13 and 20mm ID, 150mm lengths sealed in a bag
Heat Shrink - SCG Thin Wall Flame Retarded Tube

Applications:
Light duty wire harnessing for electrical and electronic applications.Provides electrical insulation and protection for in-line components. Bundles wires and cables. Used as strain relief for electrical wire connection. Bus bar insulation for switchgear. Colour coding for wires, cables, terminals and components.

General:

  • Shrink ratio 2:1
  • Flame retarded and self extinguishing (Except Clear)
  • Rated for up to 600 volts
  • Resistance to chemical, copper corrosion and fungus
  • UV stabilised (Except Clear)
Heat Shrink Tube Circular Dimensions
All Dim mm
 Part Number
As Supplied After Recovery Applicable
Range
Inside Ø Wall Inside Ø Wall
SCG1.5 2.0 ± 0.2 0.20 ± 0.05 ≤ 0.85 0.36 ± 0.10 0.95 ~ 1.4 Ø
SCG2.5 3.0 ± 0.2 0.23 ± 0.05 ≤ 1.30 0.45 ± 0.10 1.35 ~ 2.3 Ø
SCG3.5 4.0 ± 0.2 0.23 ± 0.05 ≤ 1.80 0.45 ± 0.10 1.85 ~ 3.2 Ø
SCG4 4.7 ± 0.2 0.25 ± 0.05 ≤ 2.00 0.45 ± 0.10 2.1 ~ 3.6 Ø
SCG5 5.5 ± 0.2 0.28 ± 0.05 ≤ 2.50 0.56 ± 0.10 2.6 ~ 4.5 Ø
SCG7 7.5 ± 0.3 0.30 ± 0.05 ≤ 3.50 0.56 ± 0.10 3.7 ~ 6.3 Ø
SCG8 8.5 ± 0.3 0.30 ± 0.08 ≤ 4.00 0.56 ± 0.10 4.2 ~ 7.2 Ø
SCG10 10.5 ± 0.3 0.30 ± 0.08 ≤ 4.50 0.56 ± 0.10 5.2 ~ 9.0 Ø
SCG13 13.5 ± 0.3 0.35 ± 0.08 ≤ 6.50 0.56 ± 0.10 6.7 ~ 12 Ø
SCG14 14.5 ± 0.3 0.35 ± 0.10 ≤ 7.00 0.70 ± 0.10 7.3 ~ 13 Ø
SCG16 16.5 ± 0.4 0.32 ± 0.10 ≤ 8.00 0.70 ± 0.10 8.3 ~ 15 Ø
SCG18 19.0 ± 0.5 0.35 ± 0.10 ≤ 9.00 0.70 ± 0.10 9.3 ~ 17 Ø
SCG20 22.0 ± 0.5 0.40 ± 0.10 ≤ 10.00 0.83 ± 0.10 10.4 ~ 19 Ø
SCG25 26.0 ± 0.5 0.45 ± 0.12 ≤ 12.50 0.90 ± 0.15 12.8 ~ 24 Ø
SCG30 31.5 ± 1.0 0.45 ± 0.12 ≤ 15.00 1.00 ± 0.15 16 ~ 29 Ø
SCG40 41.5 ± 1.0 0.50 ± 0.12 ≤ 20.00 1.00 ± 0.15 21 ~ 39 Ø
SCG50 50.0 ± 3.0 0.50 ± 0.15 ≤ 25.00 1.10 ± 0.20 26 ~ 49 Ø



Heat Shrink Tube Lay Flat Dimensions
Part Number Lay Flat ID Part Number Lay Flat ID Part Number Lay Flat ID
SCG5 8mm SCG16 25mm SCG40 63mm
SCG7 11mm SCG18 28mm SCG50 79mm
SCG10 16mm SCG20 31mm SCG76 119mm
SCG13 20mm SCG25 39mm SCG100 157mm
SCG14 22mm SCG30 47mm SCG120 187mm



Heat Shrink Part Numbers for Copper Lug and Link Barrel Insulation
Lug or Link to Suit Cable Size Heat Shrink Part Number
1.5mm² SCG3.5
2.5mm² SCG5
4mm² SCG7
6mm² SCG7
10mm² SCG10
16mm² SCG10
25mm² SCG13
35mm² SCG20
50mm² SCG20
70mm² SCG20
95mm² SCG20
120mm² SCG25
150mm² SCG25
185mm² SCG25
240mm² SCG40
300mm² SCG40
400mm² SCG40
500mm² SCG40
630mm² SCG50



Heat Shrink Part Numbers for Bus Bar Insulation
Width Thickness
3.2mm 4.8mm 6.4mm 9.5mm 12.7mm
12mm SCG13 SCG13
19mm SCG20 SCG20 SCG20 SCG20 SCG20
25mm SCG25 SCG25 SCG25
38mm SCG40 SCG40 SCG40 SCG40
51mm SCG50 SCG50 SCG50 SCG50 SCG50
76mm SCG76 SCG76 SCG76 SCG76 SCG76
102mm SCG100 SCG100 SCG100 SCG100 SCG100
125mm SCG100 SCG100 SCG100 SCG100 SCG100



(LGHS)



Mil-1-23053/5 Class 2&3
UL224, 125°C VW1
CSA C22.2 No. 198.1 OFT

 Product Technical Data SCG

 Properties

 Test Method

 Typical value

 Tensile strength

 ASTM-D-638

 16N/mm²

 Water Absorption

 ASTM-D-570

 0.15% Max

 Elongation

 ASTM-D-638

 300%

 Low Temperature Flexibility

 ASTM-D-2671

 -55°C

 Specific Gravity

 ASTM-D-792

 1.4

 Longitudinal Change

 ASTM-D-638

 >3%

 Flammability

 UL2324-VW1

 Pass

 Operating Temperature

 IEC216

 -55°C to +125°C

 Heat Shock @ 250°C 4 hours

 No dripping, cracking or flowing



 Fungus Resistance

 MIL-1-7444

 Inert

 Copper Corrosion

 ASTM-D-2671 B

 Good

 Chemical Resistance

 Good



 Dielectric Strength

 ASTM-D-2671

 >20kV/mm

 Dielectric Constant

 ASTM-D-150

 3.0 Max

 Volume Resistance

 ASTM-D-257

 1016 Ohm/cm

SKU LGHS
