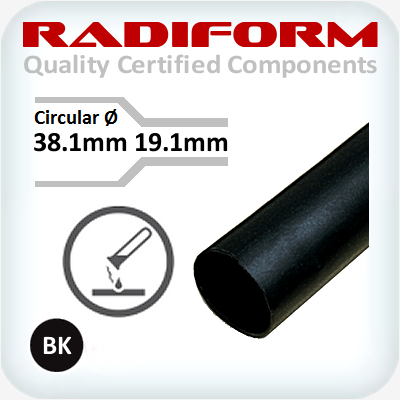

38.1-19.1mm Diesel Resistant 1.2m Lengths

RSFR-DR38.1-1.2

$69.36
Sold Out - Backorder Available


Shipping

Free Delivery Australia wide for all orders - Minimum invoice value $50


Product: 38.1mm ID to 19.1mm ID 1.2m Lengths
Heat Shrink – RSFR-DR Diesel Fuel, Chemical, and Abrasion Resistant Tubing

Applications:
Cable harnesses in vehicles, formulated for optimum high temperature and fluid resistance.

General:

  • Shrink ratio 2:1
  • Flame retarded and self extinguishing
  • Dielectric strength 15kV/mm
  • Resistance to chemicals, diesel fuels, hydraulic fluids and lubricating oils
  • Operating temperature range -75°C to +150°C
  • Meets AMS-DTL-23053/16

 Size  As Supplied (mm)  After Recovery (mm)
 (mm)  Min I.D.  Max I.D. Total W.T.
 Ø3.2  ≥ 3.2  ≤ 1.6  0.76 + 0.15
 Ø4.8  ≥ 4.8  ≤ 2.4  0.84 + 0.20
 Ø6.4  ≥ 6.4  ≤ 3.2  0.89 + 0.20
 Ø9.5  ≥ 9.5  ≤ 4.8  1.02 + 0.20
 Ø12.7  ≥ 12.7  ≤ 6.4  1.21 + 0.30
 Ø19.1  ≥ 19.1  ≤ 9.5  1.45 + 0.35
 Ø25.4  ≥ 25.4  ≤ 12.7  1.78 + 0.45
 Ø38.1  ≥ 38.1  ≤ 19.0  2.41 + 0.50
 Ø50.8  ≥ 50.8  ≤ 25.4  2.79 + 0.50



(RSFR-DR38.1-1.2)


 Product Technical Data

 Properties

 Test Method

 Typical value

 Tensile strength (MPa)  ASTM-D412  11.7
 Tensile strength after ageing (MPa)  150°C / 168h  10.4
 Tensile strength after fluid resistance (MPa)  AS23053/16  ≥10.3
 Elongation  ASTM-D412  ≥400%
 Elongation at break after ageing  150°C / 168h  ≥200%
 Elongation after fluid resistance  AS23053/16  ≥200%
 Longitudinal shrink ratio  UL224  + 10
 Operating Temperature  IEC216  -75°C to +150°C
 Full recovery Temperature    200°C
 Heat shock  4hrs / 225°C  No cracking
 Flammability  ASTM-D2671 Procedure B  Pass
 Rated Voltage    600V
 Environment    RoHS Compliant
 Dielectric Strength  ASTM-D2671  ≥11.9kV/mm
 Shrink ratio    2:1
 Standard    AMS-DTL-23053/16
SKU RSFR-DR38.1-1.2
Brand Radiform
